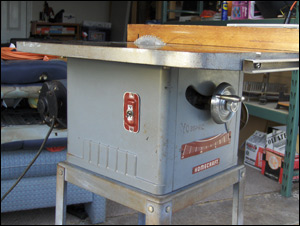

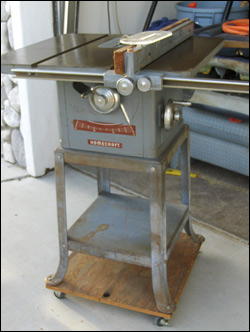

Delta Homecraft 8 Inch Table Saw No. 34-500

The Delta Homecraft 8 Inch Table Saw No. 34-500 performed all of the operations commonly done on larger and more expensive machines of its type. The working parts were enclosed in a welded steel cabinet. The saw was light weight, had a large working capacity Delta 8 Inch Tilting Arbor Bench Sawand was ruggedly designed. Cross cutting, ripping, mitering and beveling operations could be easily accomplished. Accessories for dado and molding operations were also available to extend the versatility of the saw.

See Delta Table Saw Items on Ebay

The maximum depth of cut was 1 1/4 inches. When the saw blade was tilted 45 degrees to the right, a 1 9/16" depth of cut could Delta 8 Inch Table Sawbe obtained with an 8 inch blade. The "Auto-Set" miter gauge was adjustable for cuts at any angle up to 60 degrees right or left. The "Micro-Set" rip fence could be clamped at any point along the entire width of the table including the side extensions when mounted.

The table height of the saw was 34 1/2 inches above the floor when mounted. Its size is 15 inches wide by 22 inches deep; when both side extensions are mounted, its size is 25 inches wide by 22 inches deep. The cabinet size is 13 1/2 inches wide, 14 inches deep by 11 1/2 inches high.

The construction of the saw featured a welded steel cabinet ruggedly constructed as a Delta 34-500 8 inch Table Saw Cabinetframe for mounting the table and carrying the working parts to provides maximum safety for the operator. The use of a heavily ribbed table, side table extensions, arbor bracket, trunnions and trunnion brackets made of sturdy grey iron castings produced maximum rigidity between the working parts of the machine. Cast Iron Table Extensioin

The arbor was ground to a close tolerance and its flange was finish faced accurately after it was assembled. These manufacturing enhancements assured a true running arbor on which the blade was mounted and held square with the axis of rotation.

Delta Auto Set Miter Gage

arrow Delta Homecraft 8 Inch Table Saw No. 34-500 Parts List & Manual

Delta 8 Inch Tilting Arbor Bench Saw Rip FenceThe rip fence extended the full length of the table. It included the front and rear locking devices independent of one another. The rip fence could be moved along the graduated scale on the front guide rail without having to measure the distance from the saw blade each time since the pointer incorporated in the front clamp block enabled the operator to read the distance directly.

The blade guard with splitter and anti-kickback fingers gave maximum protection to the operator Delta 34-500 8 Inch Tilting Arbor Bench Sawand view of the saw blade at all times. It was mounted on the saw in such a way that it tilted with the saw at any angle.



The raising and tilting mechanisms were operated by hand-wheels with free turning hand grips and useful locking devices which were located at convenient positions on the side of the saw cabinet.

Delta Homecraft Bench Model 8" Tilting Arbor Saw Model No. 34-500

Delta 8 Inch Table Saw

Basic Machine Accessories & Parts

Delta 62-253 3/4 HP Motor

No. 62-250 1/2 H.P. MotorDelta 62-253 3/4 H.P. Motor
This was a capacitor start, 115 volt, 60 cycle, 1725 r.p.m. motor with ball bearings and a 5/8" diameter shaft. The motor speed of 1725 rpm ran the arbor at 3850 rpm or the 8 inch saw blade at 8100 surface feet per minute.

34-500 Combo Motor Pulley for Jointer

No. 34-965 V-Belt And Motor Pulley Guard
This guard completely protects the operator from the motor pulley and V-belt. It prevents a bystander's hands from begin accidentally caught between the V-belt and motor pulley while in operation.

This assembly was mounted on the end bell of the motor.
Delta 34-500 Table Saw Motor Pulley

Delta HJ-17 Motor Pulley
The motor for the Delta Saw-Jointer Combination unit used different pulleys on each end. This one was used to power the 4" Homecraft jointer.

Model 34-500 8" Table Saw Hand Wheel

Delta Model 34-500 8" Table Saw Handwheel
Hand Knob - Part number TAB 160. Tapped 5/16"-18
Handwheel - Part number TAB 165S

The 8" table saw came with two of the hand wheels and lock knobs. One was located on the front of the saw for raising and lowering the blade and the other was on the side and was used to tilt the saw arbor.

Delta Model 34-500 8" Table Saw Motor Mount

Delta Model 34-500 8" Table Saw Motor Mount
Part Number TAB-109-3, Motor Bracket
Part Number TAB-117-3, Motor Mounting Plate
Part Number TAB-131, Motor Plate Rod, 5/8" x 4-11/16"

The motor mount allowed the motor to hang off the back of the saw cabinet. The mount was hinged so the weight of the motor would put tension on the v-belt.

Delta 34-500 Table Insert No. 34-961 - Circular Saw Table Insert with Leveling Screws, for use with saw blade.
Delta 34-500 Table Saw Dado Insert No. 34-963 - Dado Head Table Insert for use with Dado Head. These additional table insert can be adjusted so they fit flush with the table surface and are adjustable.
Delta Solid Cast Iron Extension Wing

No. 34-964, Part No. TAB-140 - Solid Cast Iron Side Table Extension,
5" x 22" x 1-1/4" thick. 22 lbs.

Delta 8" Table Saw Cast Iron Extension Wing
Delta 34-500 8 Inch Table Saw Switch Cover

No. 34-500 Toggle Swtich Name Plate

This was the Delta 34-500 Switch Name plate identified as part No. TAB-138. It measured 1 3/8" wide by 3 5/8" tall.

Delta 34-500 Table Saw Miter Guage

No. 864 Auto-Set Miter Gage

The miter gage has a 7 inch face and a 3/8 x 3/4 x 18 inch bar which fits the table slot of circular saws and other machines. It can be set at any angle up to 60 degrees to the right or left, and it has adjustable stops for instantaneous settings at zero and 45 degrees to the right or left. It can be adjusted to compensate for wear or loosening the head by merely loosening or tightening a tapered pivot screw.
No. 864 0 Miter Gage with Stop Rods
No. 865 - Clamp Attachement for Miter Gage
No. 873 - Extra sliding block complete with clamp screw.

Delta 34-500 Table Saw Stand No. 50-810 - Steel Stand with Machine Screws, Nuts and Washers for assembly. This stand gave the operator the correct working height and a rigid base.

Delta 34-500 8 Inch Tilting Arbor Bench Saw

Delta Homecraft Bench Model 8" Tilting Arbor Saw Model No. 34-500 Specifications

Overall dimensions - 17 1/2" high by 37 1/2" wide by 22" deep
Diameter of Arbor - 5/8"
Diameter of Saw - 8"
Maximum Thickness of Cut - 2 1/4"
Maximum Thickness of Cut at 45 Degrees - 1-9/16"
Maximum Width of Dado Cut - 13/16"
Blade Tilt - 45 Degrees
Table in front of blade on capacity cut - 11-5/8"
Maximum rip to right of blade - 24"
Table working height on steel stand - 34 1/2"
Table Size - 22" deep by 15" wide
Table Size with extensions - 22" deep by 25" wide
Fence - 24 7/8" long by 2" high
Speed - 3850 r.p.m. with Standard 1725 motor
