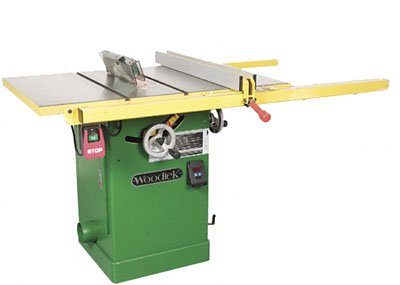

Woodtek Hybrid Table Saw

The Woodtek® 10" Enclosed Stand, Left-Tilt Hybrid Table Saw includes a fully enclosed metal stand for more efficient dust control and is available with a precision 30" or 50" fence system - left and right cast iron wings plus built-in mobile base are standard!

• Sturdy Biesemeyer®-style fence system has magnification glass, adjustable scale, extruded aluminum faces and front and back rails.
• Solid cast iron wings and table with removable aluminum insert with leveling screws.
• Locking hand wheels control blade tilt and height.
• Includes carbide-tipped sawblade, miter gauge, removable inserts, stand, mobile base, splitter, see-through blade guard, anti-kickback pawls, arbor/blade guard bracket wrench, assembly tools and instructions.
• One year parts and workmanship warranty.
• Imported.

SPECIFICATIONS:

• Motor - 2HP, 120/240V (pre-wired 120V), 1PH, 3,450 RPM; "V" belt drive.
• On/Off Switch - Push button, mechanical.
• Blade Speed - 3,600 RPM (cutting angle tilts to the left).
• Sawblade - 10" dia., 5/8" arbor.
• Table - 27" x 44" (including two, 12" x 27" cast iron wings); two, 3/8" x 3/4" miter gauge T-slots.
• Miter Gauge - 6-7/8" wide face, 17-7/8" long bar.
• Maximum Cut Depth @ 90° - 3-3/8".
• Maximum Cut Depth @ 45° - 2-1/4".
• Maximum Rip Left Of Blade - 5-1/4".
• Distance From Table Front To Blade - 15-1/4".
• Maximum Dado Width - 3/4".
• Dust Port - 4" dia.
• Overall Dimensions - 34-3/4"H x 65"W x 31-1/2"D.
• Net Weight - 336 lbs.
• Shipping Weight - 411 lbs. (including fence and rails).
• NOTE: Although deemed accurate, specifications are not guaranteed.

The street price for the Woodtek Hybrid Table Saw was $930. It features a 2 HP, 18 amp motor

Woodtek Hybrid Table Saw Reviews

"The Woodtek is a hybrid saw with an enclosed motor, which makes alot of sense to me. It's also made in Taiwan by GeeTech and is basically the same saw as the GI 50-220 and Sunhill Machinery hybrids. Things like paint, fences, bolt-ons, accessories, warranty, retail situation are what differs most between the these 3. The saw features a dual stage drive system said to increase torque, and a one-piece cast blade shroud. The digital bevel gauge is a nice touch, and the fence looks good. From an in-store inspection, the GI looks like a good saw to me, and has reviewed reasonably well...haven't seen the WT and Sunhill in person. One drawback is that the motor is not in a standard NEMA 56 frame, which means if ever needs replacing, you're options are a proprietary replacement from the manufacturer or having it rebuilt. Another drawback that's applies to many, is that the trunnion bolts are darn hard to reach for adjustment. I'm not certain, but the throat inserts may be that thin style that's difficult duplicate in the shop if you make your own."
