Craftsman 18" Jig Saw Model No. 103.23150

Craftsman 18

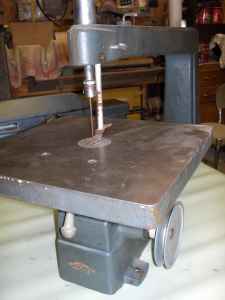

Nice old Craftsman 18" Jig Saw Model No. 113.23150. This saw is made of heavy cast iron and has a removable arm so that you can use it as a stationary sabre saw. The 103 prefix in the model number indicates that this saw was made by the King Seeley Corp. for the Sears Craftsman brand.

This 18" belt driven saw has bronze bearings that run in a bath of oil underneath the saw table. It cuts wood up to two inches thick, but it's slow going. The table tilts 45 degrees for mitering or beveling. It includes a blower to keep saw dust out of your way. It used 5 or 6 inch plain end saw blades.

The recommended motor is a 1/3 HP 1725 rpm capacitor start motor. The cast iron table is 12" x 12".

In 1959, this saw sold in the Craftsman catalog for $46.95 without the motor.

Comments for Craftsman 18" Jig Saw Model No. 103.23150

Average Rating

Click here to add your own comments

Jun 02, 2023
Rating

what size pulleys NEW
by: Anonymous

what size pulleys is suggested for this jig saw i have the same one that was my uncles mine runs to fast keeps bteaking blades

Jan 24, 2023
Rating

For sale NEW
by: Anonymous

I have a Craftsman Stationary Jig Saw. Serial #103.23150. What is it worth?

Jan 16, 2022
Rating

Converting this jig saw to saber saw NEW
by: Anonymous

How do you convert it to a saber saw? What blades would you use?

Mar 01, 2021
Rating

Where to find parts?
by: Anonymous

Hey, y'all, I'm trying to restore the one in my dad's shop and I'm looking for some of the smaller parts. Specifically, I'm clearly going to need to replace that leather cup washer, it's trashed. Where would you go for the parts, since SearsPartsDirect says that they don't make those parts any more (not surprising, just sad)

Oct 24, 2020
Rating

blades for this saw NEW
by: Tom

I just bought one of these scroll saws yesterday and I need to find blades for it. This looks to be a well built saw and I am ready to use it. What is everyone using for blades? Please email gibbs2trigger@gmail.com

Oct 29, 2019
Rating

Old Craftsman Jigsaw Sold
by: Chief

I had a Craftsman model 103.23151 for sale, posted on this site. It's no longer available. 52xchief@gmail.com

Jul 13, 2019
Rating

I have one for sale. NEW
by: Chief

I have a Craftsman model 103.23151 for sale. Asking $50. 52xchief@gmail.com

Dec 29, 2018
Rating

Blower NEW
by: Anonymous

I can’t find the blower.

Sep 21, 2018
Rating

Ace Hardware.... NEW
by: Anonymous

Has 6" blades you can buy and cut to fit (see my posts below) best ones are fine tooth as that is what it is meant for. Slow, up to 2" wood.

Sep 09, 2018
Rating

More for Frustrated: NEW
by: Anonymous

Here is the link for the PDF 4 page with schematic. I believe someone posted above me with this link, but here it goes.

http://www.vintagemachinery.org/pubs/222/5039.pdf

I asked him and he said he will double check next time and make sure what he cut the blade length to that seems to be working fine so far. He also said the set screws he has in there ( original) are flat. Some you buy after market could be rounded and not hold it. We're just learning as we go so we're sharing.
The blades he bought and cut to fit are Stanley Coping Saw Blades,20 TPI, 6 1/2" pin ends and he as mentioned already, cut the pin ends off to fit and we have had no breakage, knock on wood. They cut so smooth it's amazing how smooth the end of the wood is!

Sep 09, 2018
Rating

To Frustrated: NEW
by: Anonymous

My husband rescued one of these just days ago( 103.23150) from his dad's shed, which was once at his grandfather's shop.

He bought Stanley Plain End 6" blades with small teeth for fine work ( this machine is for slower finer work) and measured from end to end to 5 1/4" as that was what was in the saw when he picked it up, and it worked well without falling or breaking out of the chuck.

The set screws must be adjusted slowly with much checking of the blade for any twist even in the slightest, otherwise it will not cut properly and break, or get yanked out from either top or bottom chuck. Patience is the key here. So far so good. Literally he said, "when in doubt, start over and check it." If it's too long that will also cause it to not hold. You can 'feel' it 'go into place' after messing around with it and learning it. The top shaft also can be slowly ( again, slowly) and gently to the right or left to assist in proper alignment.

I found a 4 page schematic and explanation of lubrication, tightening, etc. but I'd have to post again for the answer to where I found it free in PDF form. This saw has been a great project and I'll also post the exact numbers and name of the blades he is now using.

Sep 07, 2018
Rating

Parts NEW
by: Ron

103-23150 scroll saw ,looking for blades and a top guide(fork shaped piece) I'm restoring it..

Jul 10, 2018
Rating

Frustrated NEW
by: Adam Bujorian

I picked this saw up for $40. Mounted it to an old table, oiled up the top pump, and replaced the set screws. I have a 1/3 hp craftsman motor attached. As soon as i turn it on the blade either gets yanked out of the bottom chuck or breaks off in the bottom chuck. Ive tried sanding theends of the bladw, sanding the set screws. I have no idea why this is still happening. Anyone experienced this? Much thanks.

Jul 10, 2018
Rating

Apr 07, 2017
Rating

thanks for the info NEW
by: tony from virgina

i was given a model 130.23151 sears scroll saw and was looking for information and you guys helped . thank you very much. i was also given a 1950s shop smith both pieces work and are in great shape.i look forward to spending more time looking at the old tools on your web site . thanks again

Jul 27, 2016
Rating

venta NEW
by: Anonymous

donde puedo adquirir una ?

Jan 22, 2016
Rating

Need blades NEW
by: David

Where is the best place to find 5 inch or 6 inch plain end saw blades for this kind of older jig saw??? Any suggestions?

Jan 03, 2016
Rating

For sale--Craftsman model 103-23150 works good NEW
by: Cynthia

I have a Craftman model 103-23150 jig saw with a light attached for sale, I am asking $75.00. I am located in Palm, Pa. About and hour north of Philadelphia and 30 mins south of Allentown. I can send pictures if you would like to see it. My email address is -- cindisplace@msn.com. I may be willing to accept a reasonable offer.

Nov 10, 2015
Rating

craftsman 10323151 scroll saw NEW
by: Russ

I have one that needs a protractor, motor runs,mechanism runs, some surface rust. If you need one let me know. Can send picture if interested. DFW area.
Russtinok@aol.com

Mar 18, 2015
Rating

manual/parts list NEW
by: Anonymous

http://vintagemachinery.org/pubs/detail.aspx?id=591

Dec 27, 2014
Rating

Craftsman 18 Scroll Saw 103-23151 need manual NEW
by: Angelo

I just purchased one model # 103-13151. It is currently not working and I am looking for a parts list or repair manual.
Abonfiglio@icloud.com

Dec 27, 2014
Rating

Nov 14, 2013
Rating

103.23150 NEW
by: jay

I just bought one of these. The guy fully restored it and did a fantastic job. I compared it to some of the 500 dollar saws and it blew them away. I gave him $200.00 for it and his restoration job. I also do restorations on vintage craftman machines and it was well worth it. I passed up a PS wood machine for it.It had Absolutly NO vibration. And the design actually causes air to blow the dust off so you can see your cut. No blower needed.

Aug 18, 2013
Rating

103.23150 NEW
by: Mike

This saw was made between the mid 1930's to 1944 and was built by Central Specialty Co. King-Seeley bought them out in 1944.The web site VintageMachinery.Org talks more about the history. I have one and am restoring it. It was in good condition when I was given it. Mike

Mar 24, 2012
Rating

18 inch sears scroll saw NEW
by: Anonymous

i have a sears scroll saw, 18 inch, model no.103.23151, if any one is interested in purchasing this model, good shape, works well, or does any one know the actual worth of this model now, you can reply back on this page.

Mar 23, 2012
Rating

Clarification Please NEW
by: Distant View

Your title says "Model No. 103.23150"

Your narrative says "Model No. 113.23150"

Could you verify which model number is correct, please?

Oct 06, 2011
Rating

Original Cast Iron & Wood Stand
by: Anonymous

My Dad had one of the Jig saws like the one listed. My mom gave it to him when they got married. The stand is from the early 50's . Any idea what it might be worth? It is in like new condition.

Thank You Chuck

Sep 22, 2011
Rating

I have one just like this one.
by: Craig

My grandfather passed away when i was just a kid in 1981. He was a hobby woodworker with a work shop full of tools. My only memories of him were of him in his woodshop working on a project. Somehow after all those years gone by my brother saved this jig saw. I now have a wood shop for hobby and I now have the old Sears Roebuck jig saw model no. 103.23150. I would like to refurb it and use it, but before I start I would like to know what all I need to do. I plugged it in and it works but it is well rusted. Looks well kept but has surface rust. I really want to know what chemical/rust remover I should use. Should I just strip the 12"x12" plate or do enitre saw? And what's this about a pan full of oil on the bottom? Do I need to change the oil? Any suggestions would be appreciated.

Craig
bingocraig@yahoo.com

Oct 06, 2009
Rating

Craftsman Jig Saw
by: Peter

I have the jig saw pictured above for sale Metro Knoxville, Tenn. area. Good condition. 865-453-8376

Oct 04, 2009
Rating

For Sale
by: Peter

I have the jig saw illustrated above for sale. Good condition. Knoxville, Tenn metro area. Call 865-453-8376

Jul 20, 2009
Rating

103 23151 Craftsman, Sears & Roebuck
by: Tom

Have a Craftsman old cast iron jig saw in good shape for FREE. Also w/motor and home made wood stand. Looks just like picture

Live in SF Bay Area...call 650 619 6879

Jun 13, 2009
Rating

14" jig saw
by: Anonymous

I recently received a 14" wood wizard jig saw -- I would like to know (1) who sold it? (2) can parts be obtained for it & if so where? I do know it was made in the U.S.A. @ Herbert Mach. Co, Los Anglos

Jun 03, 2009
Rating

Similar machine for sale
by: Rick

I've got a Delta Homecraft that looks very similar (ser. number 16665) but has the pulley on the other side.
send email to: rick_herr@jaars.org

Apr 27, 2009
Rating

sears and roebuck tools
by: Anonymous

Does anyone have one of these models for sale?

Please email me cstawniak@omni-group.net

Sep 23, 2008
Rating

paperwork
by: Anonymous

Can anyone provide a link to scans of the manual or any paperwork for this tool. I bought one for $40 bucks the other day. It was nicely mounted on a stand with the motor mounted on a lower shelf:)

Aug 14, 2008
Rating

Parts Questions.
by: Anonymous

I recently bought this jig saw and I am wondering how to get replacement parts such as a motor,or any other part that might need to be replaced. The machine still runs and needs to be cleaned a good find for $25.00 plus motor and stand.

Thanks your imput regarding this machine!

Jeff

Aug 09, 2008
Rating

I just bought one of these
by: B. Cross

I just bought one of these with the motor on a stand for $25 alond with a Craftsman lathe of the same body style it was $25 and on a bench also. Both came with motors.
