Jet 10" Cabinet Saw Model JTAS-10XL Table Saw



The popular Jet 10" Cabinet Saw Model JTAS-10XL XACTASAW boasts a powerful 3 HP motor and exclusive 50" commercial XACTA fence II with T-square design. This XACTASAW is left til with a wide stance heavy-duty trunnion for stability and smooth blade positioning, and powder coated for a long lasting, chip resistant finish.!

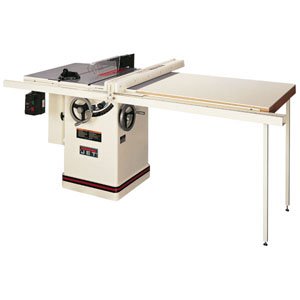

Jet 10" Cabinet Table Saw Model JTAS-10XL





Jet 10" Cabinet Saw Model JTAS-10XL Features

  • EXCLUSIVE 50" commercial XACTA┬« Fence II with T-square design
  • Cast iron wings to increase work surface and support area
  • Three matched V-belts deliver full power to the blade
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Hinged motor cover on cabinet gives quick access to the motor and belts
  • Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
  • Built-in 4" port for dust collection
  • See-through blade guard with splitter and anti-kickback pawls helps protect operator while giving a clear view of the material being cut
  • Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
  • Miter gauge with adjustable positive stops for accurate mitering
  • Powder coated paint for a long-lasting, chip-resistant finish
  • Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning

Model Number JTAS-10XL50-1Specifications

  • Height 0 inch
  • Width 0 inch
  • Length 0 inch
  • Net Weight 528 pound
  • Blade Diameter 10"
  • Arbor Diameter 5/8"
  • Arbor Speed 4200 RPM
  • Maximum Depth of Cut 3"
  • Maximum Depth of Cut at 45 Degrees 2 1/8"
  • Maximum Rip Right of Blade 50"
  • Maximum Rip Left of Blade 12"
  • Table in Front of Saw Blade at Maximum Depth of Cut 12"
  • Maximum Width of Dado 13/16"
  • Maximum Diameter of Dado 8"
  • Table Type Cast Iron
  • Table Height 34"
  • Table Size with Standard Extension (L x W) 27" x 40"
  • Table Size without Extension (L x W) 27" x 20"
  • Dust Port Outside Diameter 4"
  • Dust Collection Minimum CFM Required 350 cu.ft/min
  • Motor Power 3 HP
  • Motor Voltage 230 V
  • Prewired Voltage 230 V
  • Motor Current 14.5 A
  • Motor Phase 1 Ph
