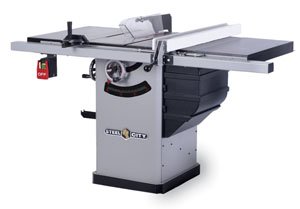

Steel City 10" Cabinet Saw Model 35675
The Steel City 10" Cabinet Saw Model 35675 is the newest in the Steel City line of 10" cabinet saws.
 |
10" Cabinet Table Saw Precision Ground, T-Slotted Table Top with 12" Wide Cast Iron Wings and Table Board: 3 HP TEFC Dual Capacitor Motor: Totally Enclosed Cabinet with 4" Dust Port: |
Cabinet Mounted Trunion System:
The precision-machined cast iron trunions are mounted to the cabinet to ensure perfect blade alignment, increased stability and to eliminate vibration.
Standard Equipment:
Includes 3 HP dual capacitor, single phase 230V, TEFC motor with Magnetic paddle-type switch; 30" Deluxe Fence System, carbide-tipped 40 tooth ATB saw blade, two 12" cast iron wings, 12" table board, standard blade insert, miter gauge, 4" dust connector, motor cover and user manual and parts list.
Cabinet Mounted Trunion System:
The precision-machined cast iron trunions are mounted to the cabinet to ensure perfect blade alignment, increased stability and to eliminate vibration.
Precision-Machined Table Top with 12" Wide Cast Iron Wings and Board provides additional work support for a variety of sawing operations.
Quick Disconnect Blade Guard:
Easily removable for blade changing operations.
Steel City 10" Cabinet Saw Model 35675 Specifications:
- Motor 3 HP TETEFC, 230V, 60 Hertz
- Phase Single
- Switch Magnetic
- Blade Diameter 10"
- Blade RPM 3,450
- Arbor Size 5/8"
- Blade Tilt Left
- Max. Depth of Cut at 90º 3 3/8"
- Max. Depth of Cut at 45º 2 1/4"
- Max. Rip Right of Blade 30" (35675), 50" (35685)
- Max. Rip Left of Blade 12 1/2"
- Table in Front of Blade 12 1/2"
- Dado Capacity 13/16"
- Table size 20" x 27"
- Table Size w/ Ext. Wings 56 1/2" (35675), 77" (35685) and Table Board
- Table Height from Floor 35 1/2"
- Dust Port Size 4"
- Overall Width w/ Fence 64" (35675), 84" (35685)
- Overall Height from Floor 40 1/2" to Top of Blade Guard
- Overall Depth from Front 36" Rail to Rear of Blade Guard
- Base Dimension for Mobile Base 22" x 19 1/2"
- Weight (Shipping, Net) 455 lbs., 400 lbs.
- Warranty 5 Years
