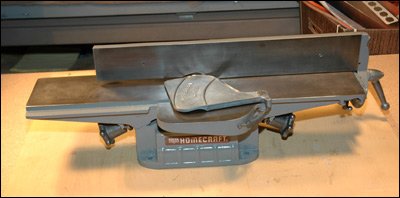

Delta 4" Homecraft JointerThe Delta Homecraft Jointer Model No. 37-110 was priced for the homeowners budget and was a welcome addition to any shop.

Delta Jointers For Sale

The jointer embodied many outstanding features found only in large commercial tools. It will rabbet up to 1/4 inch deep and has a 4-inch capacity in width of cut.

Delta Tool Parts for Sale

Delta Jointer Parts

Other Delta Tool Parts for Sale

Delta Table Saw Parts
Delta Band Saw Parts
Delta Scroll Saw Parts
Delta Jointer Parts
Delta Shaper Parts
Delta Disc Sander Parts
Delta Belt Sander Parts
Delta Wood Lathe Parts

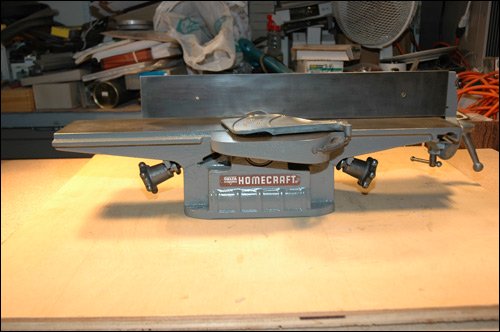

The Delta Homecraft Jointer fence is an accurately ground casting heavily ribbed for rigidity and to prevent warping. It is 20" long by 3" high; locks in place anywhere across the table; can be tilted 45 degrees to the right or left and is provided with an adjustable stop so that the fence can be returned to 90 degree setting without continual rechecking.

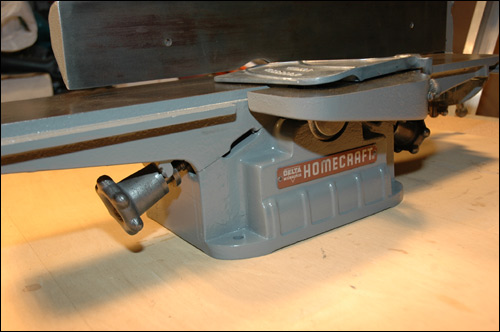

Conveniently located control knobs in the front and back permit accurate setting of the table. Both the infeed and outfeed tables were finish ground after assembly, thus assuring true alignment.

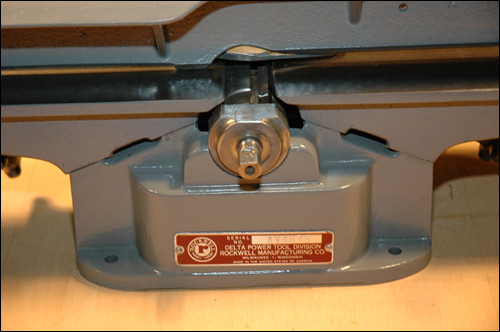

The solid steel cutterhead runs in sealed for life ball bearings. Three high speed steel knives are securely locked in dovetailed grooves of the cutterhead. This Delta Homecraft Jointer was built for the home workshop, but it's definitely not a toy. It's heft made it a solid tool for the home shop.

Delta Homecraft 4" Jointer

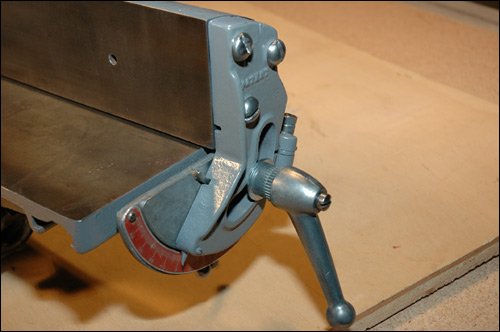

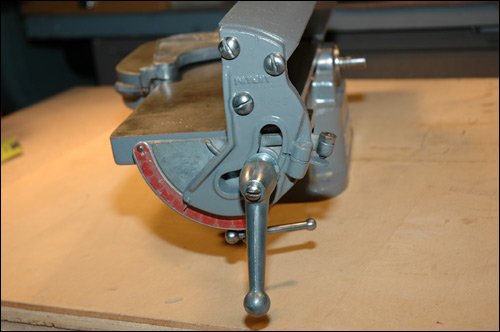

The fence tilting mechanism is shown above and provided handy, accurate scale. The fence can be tilted for any angle and tilt scale shows you the exact angle. The convenient ball end handle unlocks the fence, which can be slid the entire width of the table and locked in place at any position.

Delta Homecraft 4" Jointer



Delta Homecraft 4" Jointer

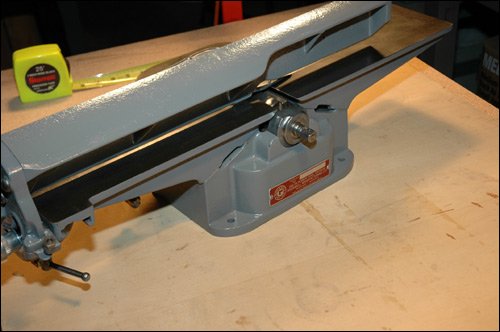

View of the back side of the jointer showing the fence, cutterhead where the cutterhead pulley will go, and base with Rockwell serial number tag.

Delta Homecraft 4" Jointer Fence



Delta Homecraft 4" Jointer Underneath Side

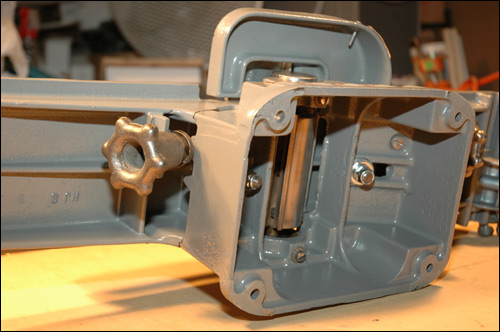

View of the underneath side of the rear table, rabbeting table, and machine base. Fawcett knob is for adjusting the height of the rear or outfeed table.

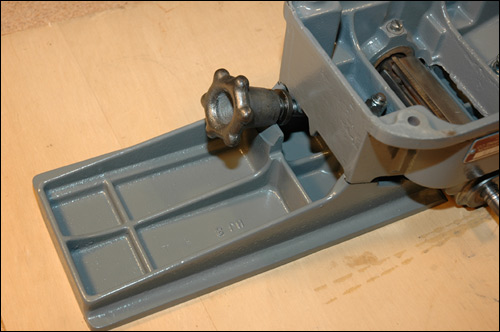

Delta Homecraft 4" Jointer Base



Delta Homecraft 4" Jointer Outfeed Table



Basic Machine Accessories & Parts

Delta 62-253 3/4 HP Motor

No. 60-410 1/3 H.P. MotorDelta 62-253 3/4 H.P. Motor
This was a capacitor start, 115 volt, 60 cycle, 1725 r.p.m. motor with ball bearings and a 1/2 " diameter shaft. The motor speed was 1725 r.p.m. generated 10,800 cuts per minute.

Delta Jointer Cutterhead No. 37-806 Jointer Cutterhead Assembly.
Complete with bearings, housings and set of No. 37-802 high speed steel knives
Delta Jointer Guard

4" Precision Jointer Blade GuardDelta Jointer Guard

The knife guard completely covered the jointer knives and slides back out of the way with the work. It was instantly removed for rabbeting and as quickly replaced.

Delta Jointer stand

No. 50-304 Jointer Stand with Dust Chute

Steel splayed leg stand measures 7" wide x 12 1/2" long x 29" high. The early stands were welded together. Later designs were bolted together and could be disassembled for easy shipping. The motor bolted onto the lower shelf. A dust chute accessory was also available.

Delta Retractable Casters No. 49-363 Retractable Casters for open Steel Stand
Delta Homecraft Jointer Riser Block No. 37-113 Jointer Raising Block

Delta Homecraft 4" Jointer

Delta Homecraft Jointer
4" Model 37-110

Delta Homecraft
4" Jointer Specifications

Capacity...... 4" wide
Rabbet..... 1/4" deep
Fence tilts right and left..... 45 degrees
Overall fence dimensions..... 20" x 3"
Adjustable stop at..... 90 degrees
Number of knives in cutterhead..... 3
Table length, overall..... 24 3/8"
Overall dimensions - 8 1/8" high x 28 1/8" long x 9 3/4" wide.
Unit has sealed-for-life ball bearing requiring no further lubrication for the life of the bearings.
